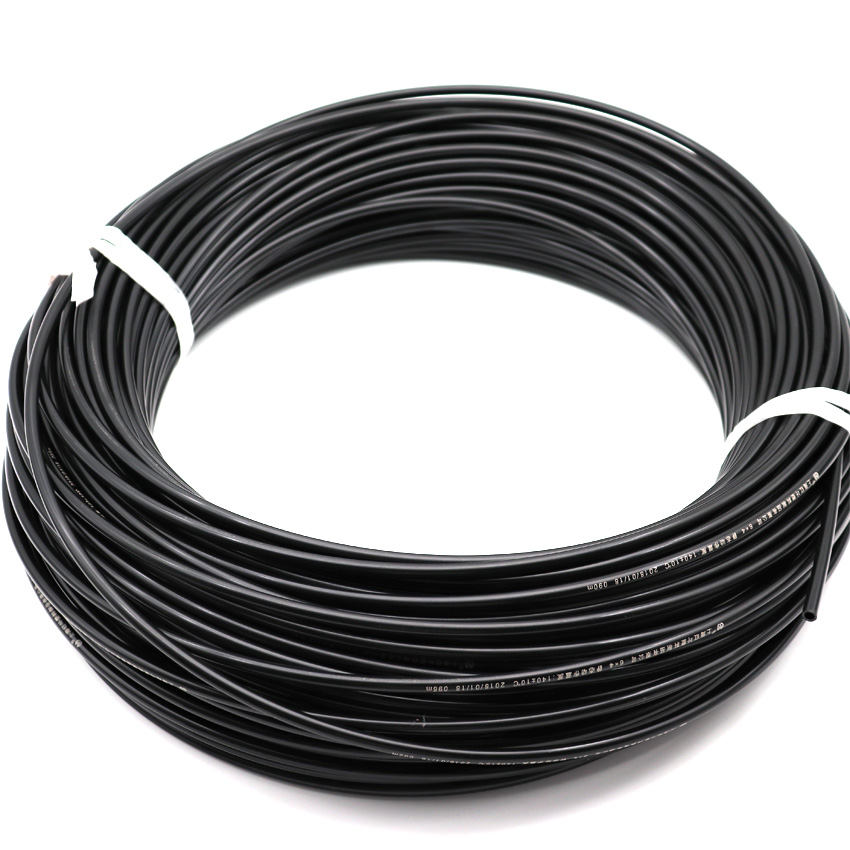

Black 6mm fire detection tube for automatic fire suppression system

Fire detection tube installation specification
1. Before installation, check whether the fire detection tube is
damaged or not. If not, please do not use it;
2. Install the minimum bend radius: ø6×4 R≥80mm;ø6×8 R≥100mm;
3. The nozzle should be flat, deburred, and the slope should not exceed
5°;
4. Install connectors, such as pipe clamps, plugs, valves, deburring,
sawdust, etc.
5. When installing, it needs to be installed in place;
6. Do not have long-term close contact with zinc-coated/zinc-containing
components;
7. During the installation of the system, it is not possible to repair
or replace any part of the device, and it is not possible to move the
installed fire detection tube;
